Silvent 700M: Energy-Efficient and Noise-Reducing Air Nozzle

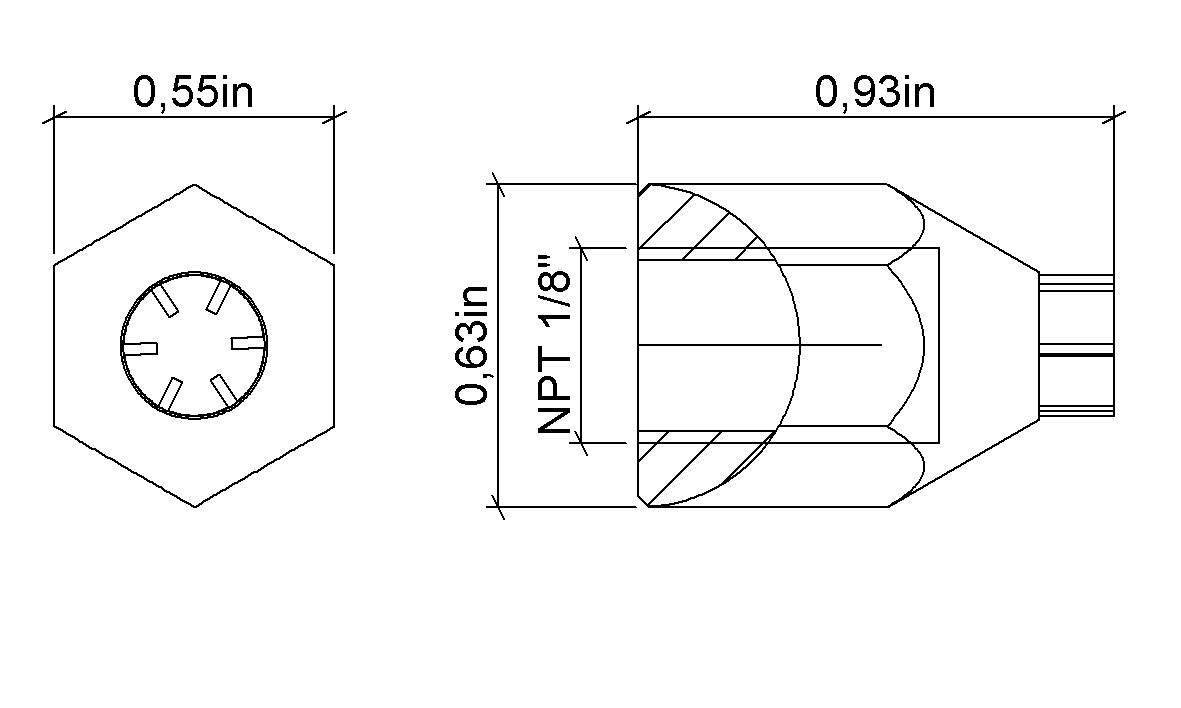

The Silvent 700M air nozzle made entirely of stainless steel with aerodynamic slots to allow optimal utilization of compressed air while keeping the noise level to a minimum. Hexagonal design fits a 14mm wrench. Features smaller dimensions than other nozzles in Silvent’s 700 series and therefore applications where Silvent;s standard nozzles may display certain limitations, for example, high ambient temperatures, hygienic requirements, mechanical wear, etc.
Technical data
| Replace open pipe Ø (inch) | 3/16 |
| Blowing force | 14.8 oz |
| Air consumption (scfm) | 14.7 |
| Sound level (dB(A)) | 84 |
| Nozzle technology | Slot |
| Material (nozzle) | 1.4305 (303) |
| Connection | NPT 1/8″ |
| Connection type | Female |
| Weight (lbs) | 0.040 |
| Max temp. (°F) | 752 |
| Max op. pressure (psi) | 145 |
Benefits when replacing an open pipe
| Replace open pipe Ø (inch) | 3/16 | |
| Noise reduction | 15 [dB(A)] | 65% |
| Energy savings | 12.9 [scfm] | 47% |
Material specification: EN 1.4305
Blowing properties at different pressures
| Pressure (psi) | 40 | 60 | 80 | 100 | 120 |
|---|---|---|---|---|---|
| Blowing force (oz) | 8.4 | 12.6 | 16.8 | 21.0 | 25.3 |
| Air consumption (scfm) | 8.8 | 12.6 | 16.3 | 20.0 | 23.7 |
| Sound level (dB(A)) | 79.0 | 82.8 | 85.6 | 87.5 | 88.9 |
Blowing coverage (inch)
Key Features:
- Energy Efficiency: The Silvent 700M is engineered to use compressed air efficiently, reducing overall air consumption and leading to significant cost savings. Its unique design ensures that air is utilized in the most effective way possible, which helps to minimize waste.
- Noise Reduction: One of the standout features of the Silvent 700M is its ability to reduce noise levels. By using advanced air technology, this nozzle lowers sound emissions, making it ideal for environments where noise control is crucial.
- Durability and Reliability: Constructed from high-quality materials, the Silvent 700M is built to withstand harsh industrial environments. It offers reliable performance over an extended period, ensuring consistent results and reduced downtime.
- Safety Compliance: The Silvent 700M meets international safety standards, making it a safe choice for operators. Its design minimizes the risk of injuries associated with high-pressure air, offering peace of mind in the workplace.
Applications:
The Silvent 700M is versatile and can be used in a wide range of industrial applications, including:
- Blowing Off Debris: Ideal for removing debris from surfaces in manufacturing processes.
- Drying Processes: Effective in drying parts or surfaces in various industries.
- Cooling: Can be used to cool down parts during production.
Why Choose Silvent 700M?
Investing in the Silvent 700M means choosing a product that not only enhances efficiency but also contributes to a safer, quieter work environment. Whether you’re looking to reduce operating costs or improve working conditions, the Silvent 700M air nozzle is an excellent choice.
