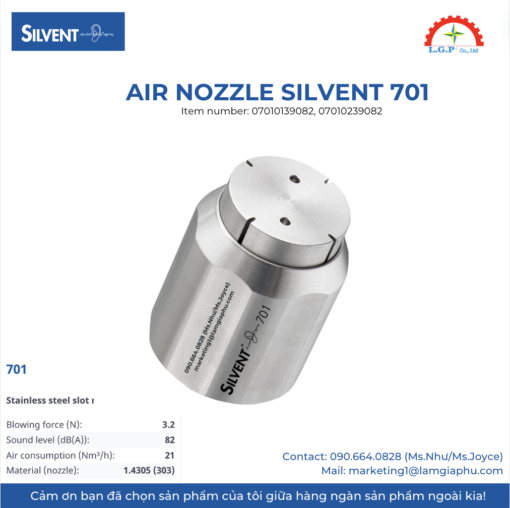

Silvent 701 Air Nozzle
The superior solution for efficient air blowing
Introduce
Stainless steel slot nozzle
Item number: 07010139082, 07010239082
The SILVENT 701 air nozzle is the first choice for industries looking for high performance and superior performance in air blowing applications. It is made entirely of stainless steel with aerodynamic slots to allow optimal use of compressed air, while keeping noise levels to a minimum. The high ambient temperatures of a glass factory or the strict hygiene requirements of the food processing industry are examples of typical areas of application. Blowing force 3.2 N (11.3 oz). Part of the SILVENT 700 series along with the 703, 705, 710 and 720.
Salient features:
Energy saving:
- Advanced air nozzle technology reduces compressed air consumption, optimizing operating costs.
- Smart design reduces noise, providing a more comfortable working environment.
High security:
- Manufactured according to international safety standards OSHA and EU, ensuring absolute safety for users.
- Reduces the risk of injury from exposure to high pressure compressed air.
Outstanding performance:
- Strong and concentrated airflow enhances cleaning and cooling efficiency during production.
- Suitable for a wide range of applications, from automotive, electronics to food processing, industry.
Durable design:
- Stainless steel material, anti-corrosion and resistant to harsh environments, prolonging product life.
- Compact design, easy to install and integrate into existing systems.
Specifications:
| Replace open pipe Ø (mm) | 4 |
| Blowing force (N) | 3.2 |
| Air consumption (Nm³/h) | 21 |
| Sound level (dB(A)) | 82 |
| Nozzle technology | Place |
| Material (nozzle) | 1.4305 (303) |
| Relation | G 1/2″ |
| Connection type | Female |
| Weight (g) | 54 |
| Maximum temperature (°C) | 400 |
| Maximum operating pressure (MPa) | 1.0 |
Benefits of replacing exposed pipes
| Replace open pipe Ø (mm) | 4 | |
| Noise reduction | 13 [dB(A)] | 60% |
| Energy saving | 9 [Nm³/hr] | 30% |
Material standard: EN 1.4305
Blowing properties at different pressures
| Pressure (kPa) | 200 | 400 | 600 | 800 | 1000 |
|---|---|---|---|---|---|
| Blowing force (N) | 1.4 | 2.6 | 4.0 | 5.2 | 6.3 |
| Air consumption (Nm³/h) | 10.0 | 16,5 | 26,5 | 33.2 | 40.0 |
| Sound level (dB(A)) | 75,3 | 80.0 | 83,6 | 86,2 | 87,5 |
Blowing range (mm)
LGP Co., Ltd – We supply Silvent 701 air nozzle , which is famous for its superior quality and performance in the market. Our products are highly appreciated by customers for their reliability and standard quality. The products are carefully tested, purchased from reputable sources and are in high demand. We supply nationwide at competitive prices. In addition, we also supply products of brands such as Silvent, Vikan, Air Torque, Jumo, Yudian, …
