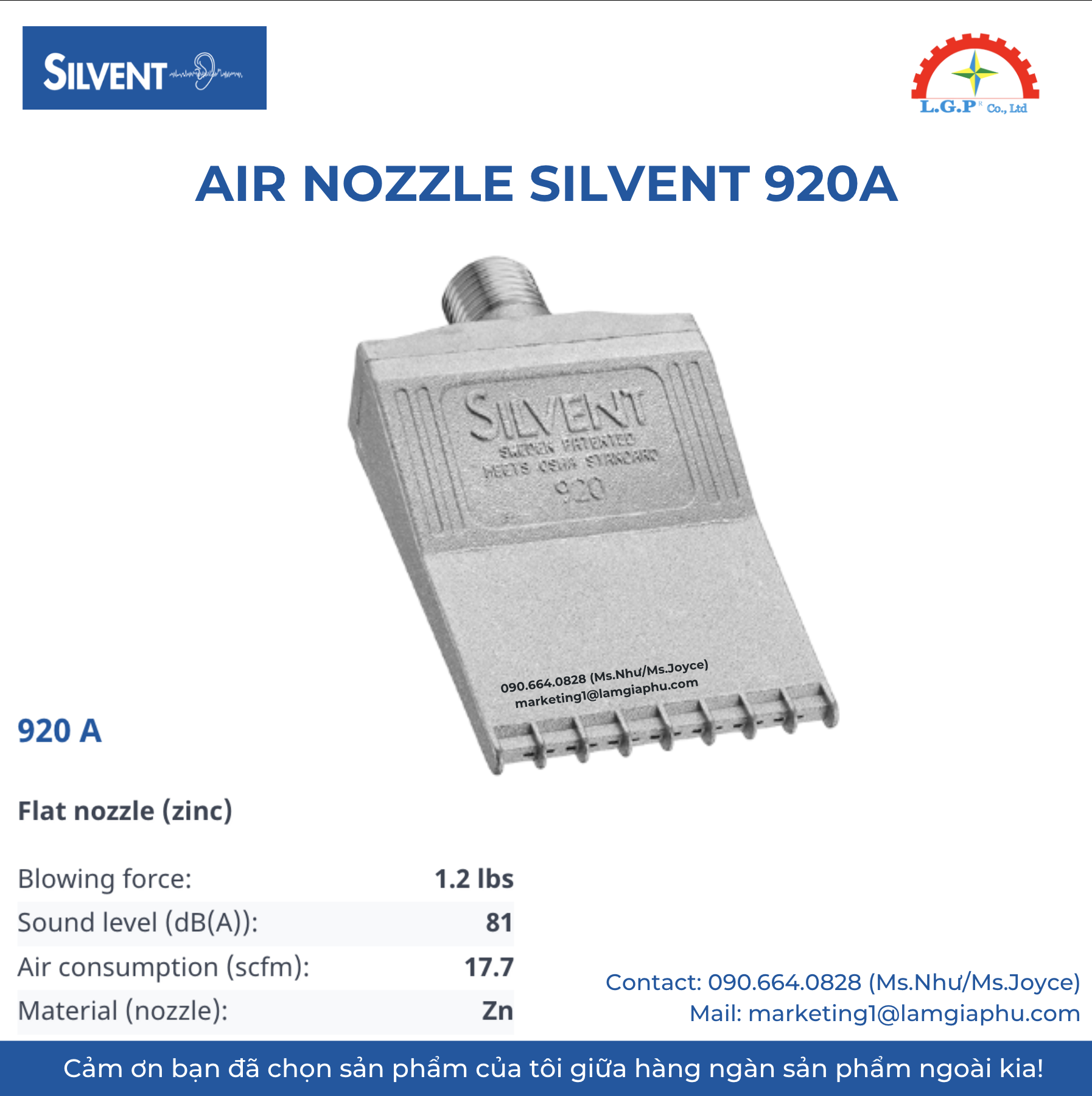

Silvent 920A Energy-Efficient and noise-reducing Air nozzle
Over view
Item number: 09200139105, 09200239105
- Flat nozzle (zinc)
The Air Silvent 920 A is specifically designed to provide a powerful and even airflow while saving energy and minimizing noise in industrial application. With advanced technology from Silvent, this nozzle delivers optimal performance for cleaning, drying and cooling process
Key Features
- Unique design: Silvent 920A features micro – nozzle holes that create a powerful airflow while remaining energy-efficient
- Efficient noise reduction: This nozzle helps reduces noise levels by up to 75%, protecting worker’s hearing and reducing occupational insurance costs.
- Energy savings: using Silvent 920A can significantly reduce compressed air consumption, leading to substantial energy cost saving for business
- High quality material: made from high-quality stainless steel, the Silvent 920A ensures durability and long service life even in harsh industrial environment.
- Safe operation: the nozzle meets OSHA safety standards for dead-end pressure and noise levels, ensuring safe and compliant working enviroments.
Technical data
| Replace open pipe Ø (mm) | 6 |
| Blowing force (N) | 5.5 |
| Air consumption (Nm³/h) | 30 |
| Sound level (dB(A)) | 81 |
| Nozzle technology | Slot |
| Material (nozzle) | Zn |
| Connection | G 1/4″ |
| Connection type | Male |
| Weight (g) | 120 |
| Max temp (°C) | 70 |
| Max op. pressure (MPa) | 1.0 |
Benefits when replacing an open pipe
| Replace open pipe Ø (mm) | 6 | |
| Noise reduction | 21 [dB(A)] | 77% |
| Energy savings | 37 [Nm³/h] | 55% |
Material specification: Zn ZP0410 EN 12844, NBR 70
Blowing properties at different pressures
| Pressure (kPa) | 200 | 400 | 600 | 800 | 1000 |
|---|---|---|---|---|---|
| Blowing force (N) | 2.0 | 4.3 | 7.0 | 9.2 | 11.4 |
| Air consumption (Nm³/h) | 12.0 | 25.0 | 38.0 | 50.1 | 62.0 |
| Sound level (dB(A)) | 72.0 | 79.1 | 83.3 | 86.6 | 88.4 |
Blowing coverage (mm)
Application
- Silvent 920A is ideal for various industrial applications, including:
- Cleaning and blowing: efficiently moves dust, debris and particles from surface, components, and machinery.
- Cooling: provides effective cooling for workpieces, machinery, or processes that require temperature control.
- Drying: ideal for drying parts and surfaces in manufacturing and production lines.
Why choose Silvent 920A?
- Energy Efficiently: Reduce energy consumption and save on costs.
- Durability: high-quality stainles steel construction ensures long lifesoan.
- Compliance: meets global safe standards, including OSHA.
LGP Co., Ltd – We supply Air Nozzle Silvent 920 A, which is famous for its quality and outstanding performance in the market. Our products are highly appreciated by customers for their reliability and standard quality. The products are carefully tested, purchased from reputable sources and are in high demand. We supply nationwide at competitive prices. In addition, we also supply products of brands such as Silvent, Vikan, Air Torque, Jumo, Yudian,…
